Deploy your Terraform code on AWS with Github Actions

Do you want to know why you can create resources on AWS using Terraform and Github Actions ?

✦ 4 min read
ci-cd aws github-actions

Introduction

Terraform is an Infrastucture as Code (IaC) software tool that uses a declarative, human-readable markup language to manage cloud services. Github Actions is a Continous Integration/Continious Deployment platform that allows you to automate your build, test, and deployment pipeline.

The topic of the day is: “how can you use Github Actions to create/update/delete your AWS resources using Terraform?” Obviously (or not 😛) we need:

  • a github project
  • a terraform code and
  • a Github Actions workflow

One question remains, how can you give your Github Actions workflow rights to perform operations on AWS? If you answer IAM users, I would reply, well yes, it is fast and easy but the good practice in term of security is to provide access to your resources through identity federation.

The idea is to avoid having to store credentials as long-lived GitHub secrets and instead use IAM roles and short-term credentials. The good news is AWS supports OpenID Connect. With OpenID Connect (OIDC), the Github Actions workflow requests a short-lived access token directly from the cloud provider. All we need to do is to configure a trust relationship, on the cloud side, that controls which workflows are able to request the access tokens.

Configure your AWS

  1. Create an Identity Provider

    • At the top of the console, in the search bar, search for and choose: IAM

    • From the Access Management navigation menu located on the left side of the console, Choose Identity Providers

    • Choose Add Provider , the Add an Identity provider page is displayed

    • Select the radio button OpenID Connect

    • In the Provider URL field enter: https://token.actions.githubusercontent.com and in the Audience field enter: sts.amazonaws.com

      This info is found in the Configuring OpenID Connect in Amazon Web Services of Github documentations.

    • Add tags (optional)

    • Choose Add Provider

    • A Identity provider added. message is displayed

  2. Create the role that Github Actions will assume

    • At the top of the console, in the search bar, search for and choose: IAM

    • Choose Roles, from the Access Management navigation menu located on the left side of the console

    • Choose Create Role

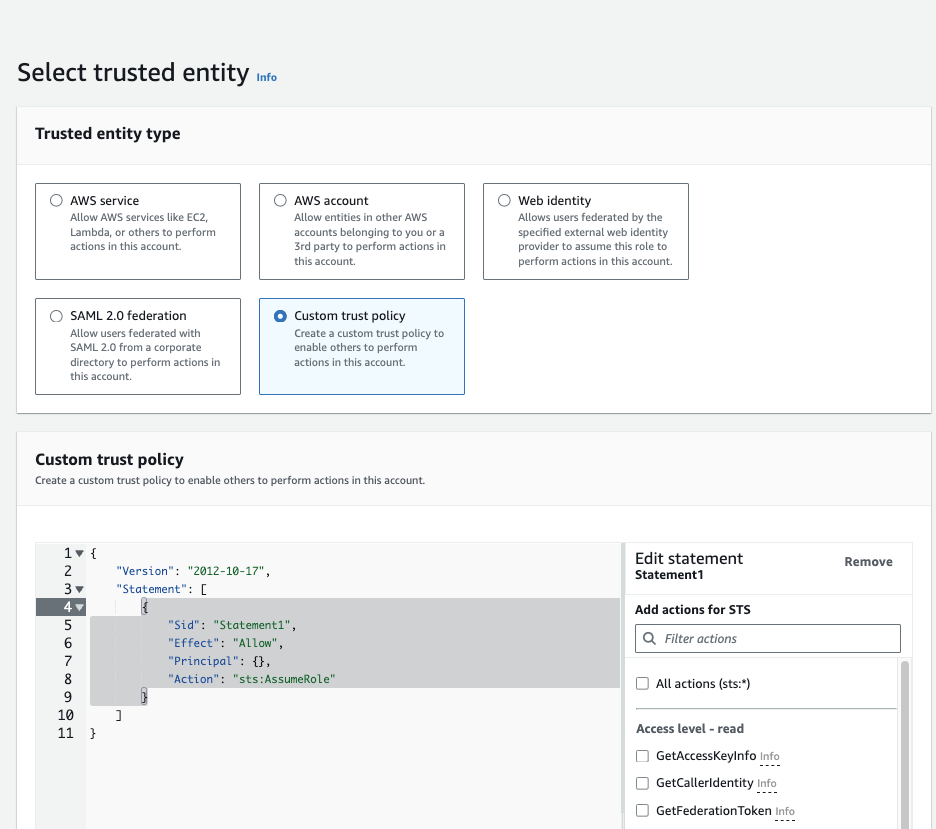

    • The Select trusted entity page is displayed as in the picture below

      AWS IAM > Roles > Select trusted entityAWS IAM > Roles > Select trusted entity

    • Select the radio button Custom trust policy

    • Another pane is displayed below titled “Custom trust policy”

    • Copy and paste the following JSON

    json
    {
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "Statement1",
      "Effect": "Allow",
      "Principal": {
        "Federated": "arn:aws:iam::<accountId>:oidc-provider/token.actions.githubusercontent.com"
      },
      "Action": "sts:AssumeRoleWithWebIdentity",
      "Condition": {
        "StringEquals": {
          "token.actions.githubusercontent.com:aud": "sts.amazonaws.com"
        },
        "StringLike": {
          "token.actions.githubusercontent.com:sub": "repo:<userName>/<repoName>:*"
        }
      }
    }
  ]
}
    • Replace <accountId>, <userName> and <userName> with your own values

    using a wildcard (*) in the github repository allow requests from any branch. It is recommended to specify a branch.

    • Choose Next

    • A page titled Add permissions is displayed, select the permissions you will need for your “Github Actions”

    • Choose Next

    • Under Role details, enter your role name and description. Under Step 1 and Step 2, verify that everything is correct. Under Step 3, you can add Tags

    • Choose Create role

    • A Role <yourRoleName> created. message is displayed on top of the screen

Write the code

Let assume our project has the following folder structure:

sh
.
├── README.md
├── .github/
│   └── deploy.yml
└── iac
   └── terraform/
       ├── dev/
       │   ├── README.md
       │   ├── providers.tf
       │   └── main.tf
       └── modules/
           └── s3/
               ├── README.md
               ├── main.tf
               ├── providers.tf
               └── variables.tf

I use modules to organise my terraform folder. As this article is more on OIDC setup with Github Actions, I will not focus too much on explaining my terraform setup.

The terraform code

Let’s say we want to create an s3 bucket.

On one hand we have the s3 modules with the following files:

tf
modules/s3/s3.tf
resource "aws_s3_bucket" "this" {
  bucket        = var.bucket_name
  force_destroy = false
}

resource "aws_s3_bucket_ownership_controls" "this" {
  bucket = aws_s3_bucket.this.id
  rule {
    object_ownership = "BucketOwnerPreferred"
  }
}

resource "aws_s3_bucket_acl" "this" {
  depends_on = [aws_s3_bucket_ownership_controls.this]

  bucket = aws_s3_bucket.this.id
  acl    = "private"
}
resource "aws_s3_bucket_public_access_block" "this" {
  bucket                  = var.bucket_name
  block_public_acls       = true
  block_public_policy     = true
  restrict_public_buckets = true
  ignore_public_acls      = true
}

tf
modules/s3/variables.tf
variable "bucket_name" {
  description = "Name of the s3 bucket. Must be unique."
  type        = string
}

tf
modules/s3/providers.tf
terraform {

  required_version = ">=1.7.0"

  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "~> 5.33.0"
    }
  }
}

On the other hand, we use the above module with the following files:

tf
dev/main.tf
module "s3_bucket_dev" {
  source = "../modules/s3"
  bucket_name = "<your-bucket-name-dev>"
}

tf
dev/providers.tf
provider "aws" {
  region = "<yourAWSRegion>"

  default_tags {
    "env"           = "dev"
    "managed_by"    = "terraform"
    "resource_origin" = "<your-github-repo>"
    ... #add as many tags as needed
  }
}

The Github Actions

Let’s create our Github Actions for deploying the terraform code

yml
deploy.yaml
# This is a basic workflow to help you get started with Actions
name: deploy terraform on AWS using OIDC
on:
  workflow_dispatch:
  pull_request:
    types: [opened, synchronize, closed]
    branches:
      - main
    paths:
      - "iac/terraform/**"

permissions:
  id-token: write # This is required for aws oidc connection
  contents: read # This is required for actions/checkout
  pull-requests: write # This is required for gh bot to comment PR

jobs:
  deploy:
    steps:
      - name: Git checkout
        uses: actions/checkout@v4
      - name: Configure AWS credentials from AWS account
        uses: aws-actions/configure-aws-credentials@v4
        with:
          role-to-assume: ${{ secrets.AWS_ROLE_ARN }}
          aws-region:  ${{ secrets.AWS_REGION }}
          role-session-name: docker-for-github
      # Test that your workflow works by doing:
      - name: Sts GetCallerIdentity
        run: |
          aws sts get-caller-identity
      ... # complete with other steps if needed

Your AWS_ROLE_ARN is a the same as the <yourRoleName> created in the above section. It is stored in github secrets. AWS_REGION is your AWS region. It is stored as a secret as well.

We are done ! We have:

  • Created an identity provider
  • Created the role that Github Actions will assume to create ressources on AWS
  • Wrote a terraform code to create an S3 bucket
  • Wrote a Github Actions to deploy our terraform code
